Materialise introduces Magics 26 with new CAD and mesh capabilities for Additive Manufacturing

May 17, 2022

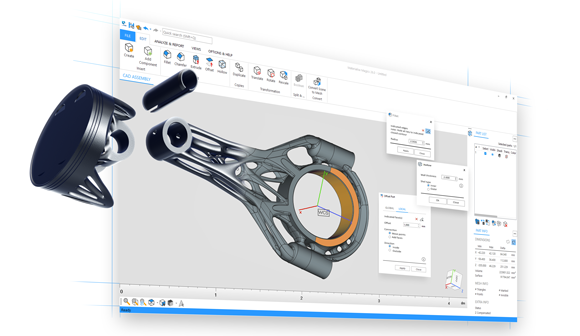

Magics 26 combines support for native CAD workflows with its existing mesh capabilities (Courtesy Materialise)
Magics 26 combines support for native CAD workflows with its existing mesh capabilities (Courtesy Materialise)

At Rapid + TCT, Detroit, USA, Materialise (Nasdaq: MTLS) introduced Magics 26, the latest version of its data and build preparation software. Magics 26 combines support for native CAD workflows with its existing mesh capabilities. This, stated the company, provides users with the best of both worlds, enabling them to boost productivity while maintaining quality by choosing the optimal workflow for each AM project.

Mesh and CAD each offer unique benefits when editing and preparing files for Additive Manufacturing. CAD offers a higher resolution than mesh for part editing. Mesh offers a consistent file format that ensures quality and compatibility with today’s industry standard AM machines, especially during build preparation. The mesh file format contains all of the information about the inside and outside of 3D models necessary to slice parts and begin a build.

“The way forward is to combine mesh and CAD for data preparation in 3D printing,” stated Egwin Bovyn, Materialise Product Line Manager. “Mesh-based processes hold significant benefits for applications and operations in data and build preparation with current 3D printing technologies. Introducing CAD-based workflows in Magics 26 creates a path toward enhanced hybrid workflows in future versions of our software.”

Magics 26 also introduces a Part Scene in which users can edit CAD-based parts in addition to mesh-based Part and Platform Scenes for editing, fixing, analysing and build preparation. Users can choose their preferred workflow based on their AM project requirements and edit their parts in mesh or in CAD format.

The new CAD-workflow for part editing supports users with projects that demand a close alignment or frequent exchange between design and data preparation. Materialise stated that editing and saving their parts in a CAD-native format enables Magics users to maintain part integrity and to use cleaner, high-resolution CAD-files. This helps to reduce time between design iterations and improves stability and repeatability by preventing errors that may occur in transitions between file types. The CAD-workflow allows users to adapt and edit parts up to the point when they are optimised and ready for production before switching to build preparation.

“With Magics 26, I can easily modify CAD-models without having to go back to a CAD-design software,” stated Astrid Dejosé, Designer Additive Manufacturing at Sirris. “It is so much more efficient to stay in Magics 26 without the need to switch between applications.”

Magics 26 also offers new mesh capabilities. Improved support generation and advanced automated nesting help to lower the scrap rate and increase productivity. Flexible cone and tree supports can be enhanced with braces to improve the stability of prints. The advanced automated nesting enables a higher part density and offers the option to generate supports between parts when producing with Electron Beam Powder Ned Fusion (PBF-EB) and Binder Jetting (BJT). The supports improve heat dissipation to decrease warping and prevent parts from fusing together during the build process.

Magics users interested in scaling up their operations for serial production and mass customization will also benefit from future integration with CO-AM, Materialise’s recently announced software platform. Building on the company’s acquisition of Link3D, CO-AM will allow manufacturers to better plan, manage and optimize their AM operations through fully streamlined and scalable workflows. Additive Manufacturing has been proven to consistently and reliably produce parts at scale, and with CO-AM, Materialise is said to support the entire serial Additive Manufacturing process, from production request through order fulfilment, in a single platform.

Magics 26 will be available on May 24, with software demonstrations available at the Materialise booth #3108 during the RAPID+TCT.
