Croft Additive Manufacturing to develop spacecraft mechanisms with ESR Space

January 8, 2016

Croft Additive Manufacturing (CAM) based in Warrington, UK, has teamed up with ESR Space, also based in Warrington, to conduct a study into the use of Additive Manufacturing to develop custom spacecraft components.

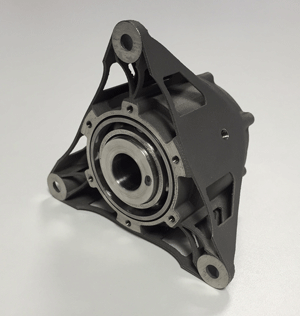

croft01

The research, funded by Centre for Earth Observation Instrumentation and Space Technology (CEOI-ST), aimed to exploit recent developments in manufacturing technology and create innovative, high-performance components for use in demanding mechanism applications. While the main emphasis of the study was on spacecraft applications, it also supported the development of supply chain capability in AM and the suitability of such processes in a range of markets, including telecommunications, science and robotics.

“During early discussions with Croft, we identified a number of synergies in the key skills it has developed as a business. It was an obvious choice to harness the process developments in this programme of work since Croft is well aligned with the technical objectives set out at the start of the programme,” stated Grant Munro, Project Manager at ESR Space.

In space applications there are a number of disadvantages to using a liquid or grease-based lubricant, such as low temperature viscosity, evaporation, loss of lubricant and contamination of other parts of the spacecraft. To address these issues, two concept designs were developed using Croft’s Realiser SLM-250 machine. These were both focused on managing the lubricant within the bearing system more effectively, with a particular emphasis on the challenges of the space environment.

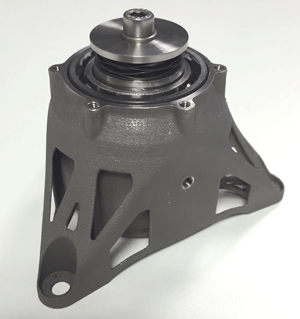

croft02

Neil Burns, director at Croft Additive Manufacturing, stated, “It is always advised to have several options when seeking to identify a bespoke solution using innovative technologies. Following the creation and analysis of the two prototypes in this instance, it was deemed more valuable to develop the lubricant retaining cage further.”

“We learnt a number of valuable lessons during this study, the most important of which was in the design process – while AM technology can give greater design freedom relative to conventional machining, it is not without constraints. In terms of next steps, a roadmap has been created to show timescales for exploitation within the space industry and beyond,” added Grant.

“All in all, this programme has been a huge success and has delivered a number of promising technologies for further development. It has opened doors for us to work in collaboration with a new partner and introduce them to the potential of Additive Manufacturing, something that we’re always working towards at Croft.”

While it is likely that the component developed will be initially used for spacecraft applications, the use of the technology in other industries such as nuclear, aerospace and medical will be explored in parallel.

www.croftam.co.uk
