ORNL researchers additively manufacture aluminium device for capturing carbon dioxide

August 24, 2020

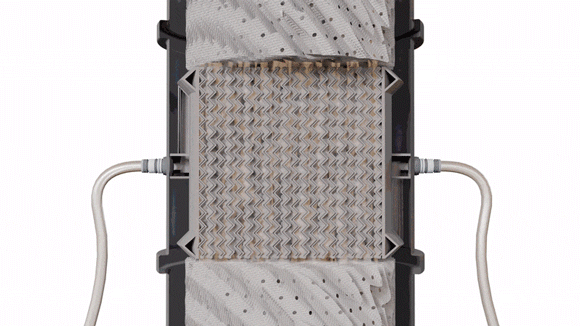

Embedded coolant channels within the intensified device reduce the column temperature due to the heat produced during the forward reaction (Courtesy ORNL/Michelle Lehmann)

Researchers from the U.S. Department of Energy’s Oak Ridge National Laboratory (ORNL), Tennessee, USA, have designed and additively manufactured what they say is a first-of-its-kind aluminium device that enhances the capture of carbon dioxide emitted from fossil fuel plants and other industrial processes.

Solutions for reducing global emissions of heat-trapping greenhouse gases such as CO2 address the continued use of low-cost, domestic fossil fuel resources while mitigating potential climate impacts. As part of its research project, ORNL’s device focuses on a key challenge in conventional absorption of carbon using solvents: the process typically produces heat that can limit its overall efficiency.

By using Additive Manufacturing, the researchers were able to custom design a multifunctional device that greatly improves the process efficiency by removing excess heat while keeping costs low. Absorption, which is one of the most commonly used and economical methods for capturing CO2, places a flue-gas stream from smokestacks in contact with a solvent, such as monoethanolamine, known as MEA, or other amine solutions that can react with the gas.

The research team tested the novel circular device, which integrates a heat exchanger with a mass-exchanging contactor, inside a 1 m tall x 20 cm wide absorption column consisting of seven commercial stainless-steel packing elements. The additively manufactured intensified device was installed in the top half of the column between the packing elements.

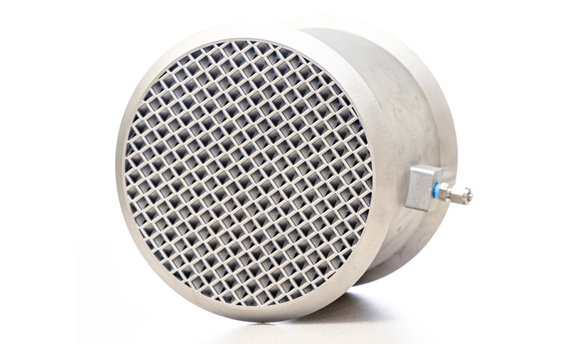

The additively manufactured intensified device is made of aluminium and integrates a heat exchanger and mass-exchanging contactor into a single device to enhance carbon dioxide capture (Courtesy ORNL/Carlos Jones)

The researchers explain that Additive Manufacturing made it possible to have a heat exchanger within the column, as part of the packing elements, without disturbing the geometry, thus maximising the contact surface area between the gas and liquid streams.

“We call the device intensified because it enables enhanced mass transfer (the amount of CO2 transferred from a gas to a liquid state) through in-situ cooling,” stated Costas Tsouris, one of ORNL’s lead researchers on the project. “Controlling the temperature of absorption is critical to capturing carbon dioxide.”

When CO2 interacts with the solvent, it produces heat that can diminish the capability of the solvent to react with CO2. Reducing this localised temperature spike in the column through cooling channels helps increase the efficiency of CO2 capture.

Xin Sun, the project’s principal investigator, commented, “Prior to the design of our 3D printed device, it was difficult to implement a heat exchanger concept into the CO2 absorption column because of the complex geometry of the column’s packing elements. With 3D printing, the mass exchanger and heat exchanger can co-exist within a single multifunctional, intensified device.”

Embedded coolant channels were added inside the packing element’s corrugated sheets to allow for heat exchange capabilities. The final prototype measured 20.3 cm in diameter, 14.6 cm in height, with a total fluid volume capacity of 0.6 l. Aluminium was reportedly chosen as the initial material for the intensified device because of its excellent suitability for AM, high thermal conductivity, and structural strength.

“The device can also be manufactured using other materials, such as emerging high thermal conductivity polymers and metals,” explained Lonnie Love, a lead manufacturing researcher at ORNL, who designed the intensified device. “Additive Manufacturing methods like 3D printing are often cost-effective over time because it takes less effort and energy to print a part versus traditional manufacturing methods.”

ORNL’s Costas Tsouris, Xin Sun and Eduardo Miramontes demonstrated that the additively manufactured intensified device enhanced carbon dioxide capture efficiency (Courtesy ORNL/Carlos Jones)

The prototype demonstrated that it was capable of substantially enhancing carbon dioxide capture with the amine solution, which was chosen because it is highly reactive to CO2

In results published in the AIChE Journal, the ORNL researchers conducted two separate experiments – one that varied the CO2-containing gas flow rate and one that varied the MEA solvent flow rate. The experiments aimed to determine which operating conditions would produce the greatest benefit to carbon capture efficiency.

According to the researchers, both experiments produced substantial improvements in the carbon capture rate and demonstrated that the magnitude of the capture consistently depended on the gas flow rates. The study also showed a peak in capture at 20% of carbon dioxide concentration, with percent of increase in capture rate ranging from 2.2% to 15.5% depending on the operating conditions.

Sun added, “The success of this 3D printed intensified device represents an unprecedented opportunity in further enhancing carbon dioxide absorption efficiency and demonstrates proof of concept.”

Future research is expected to focus on optimising operating conditions and device geometry to produce additional improvements in the carbon capture absorption process. The research project was sponsored by DOE’s Office of Fossil Energy.
