Linde and 3D Medlab test optimal atmospheric solutions for AM

June 14, 2021

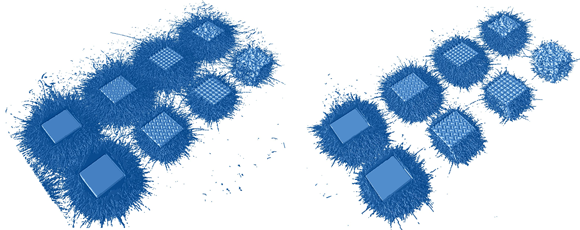

Spatter formation using argon gas only (left image) versus spatter formation using novel argon-helium gas mixture (right image) (Courtesy Linde)

Global industrial gas specialist Linde, Guildford, Surrey, UK, has announced the results from testing its new process gas developed for the optimisation of the Additive Manufacturing of medical components. The introduction of the novel gas mixture follows on from the promising results of a joint development programme between Linde and 3D Medlab, Marignane, France – now part of Marle Group.

Undertaken between January 2020 and March 2021, the study investigated the effect of the new process gas on spatter formation and process stability during Laser Beam Powder Bed Fusion (PBF-LB) of Ti64 lattice structures and their resulting properties. Process monitoring with optical tomography pictures showed that spatter emission was significantly reduced when working with argon-helium mixtures compared to argon alone. Research results have appeared to confirm that Linde’s argon-helium gas mixture decreases spatter emissions by 35%, considerably reducing the risk of manufactured defective parts and improving overall surface quality.

“The ability to print reliably repeatable products is key to improving product qualification, which is crucial for the medical industry,” stated Sophie Dubiez-Le Goff, Expert Powder Metallurgy for Additive Manufacturing, Linde. “Additionally, from a commercial perspective, printing time is the greatest single cost element in Additive Manufacturing, but this can be speeded up for thin parts by using just the right atmospheric gas mixture. Linde’s novel argon-helium mix has been developed to do just that, and is a major step forward in the manufacture of titanium medical devices.”

Levels of porosity and surface quality are fundamental factors in the quality of mechanical properties of highly intricate parts, by ensuring the finished product is as close to the original design specification as possible and also that fewer metal powder parts can potentially be released into the human body.

“Porosity is the first criteria we look at in terms of defining the quality of an additive manufactured medical device,” added Gael Volpi, Head of Additive Manufacturing, Marle Group. “The results of our joint atmospheric gas study with Linde shows that the right balance of helium to argon in the process gas mixture – and ease of implementation – can make all the difference to both quality of output and productivity.”

The inert gas within the build chamber is a critical element that can affect both part quality and overall production speed, so the study was primarily aimed at assessing the ideal gas mixture to optimise both outcomes. When using argon alone, it was observed during testing that there was a significant amount of spatter – or molten metal particles caused by the laser – splashing against adjacent parts being manufactured. Spatter on highly-intricate parts is undesirable, resulting in less fine quality of part threads. Additionally, the use of pure argon resulted in a level of porosity that Linde and 3D Medlab engineers believed could be significantly improved.

“Higher productivity was not reached at the expense of quality,” continued Dubiez-Le Goff. “On the contrary, thanks to the new process gas mixture being so effective in reducing porosity content by 70% – according to micro-computed tomography analyses – compression properties remained comparable to parts processed with argon only.”
