ModuleWorks’ latest release enhances CNC toolpath generation with GPU-accelerated simulation and advanced edge finishing
April 29, 2025
ModuleWorks GmbH, based in Aachen, Germany, has announced the 2025.04 release of its software components for digital manufacturing. This latest release of the ModuleWorks SDK includes new and enhanced features designed to enhance process safety, improve toolpath generation efficiency, and increase part quality.
TRUSTED CONTENT. TARGETED AUDIENCE
Advertise with Metal AM and access a global base of 50,000+ AM professionals
| Contact us |
Multi-axis edge finishing- deburring

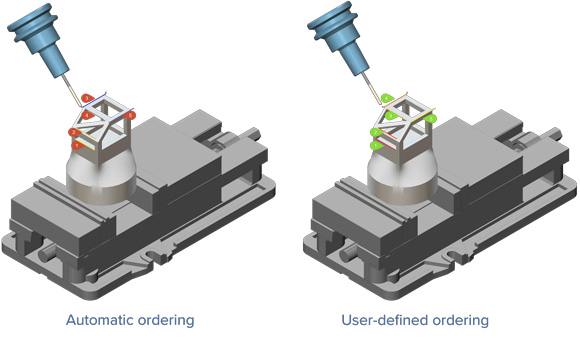

User-defined edge sequence
With automatic sorting, it is often difficult to meet the deburring requirements of each part because the predefined order does not always match the specific needs of the job.
The ModuleWorks 2025.04 release introduces a practical alternative to automatic sorting: Users can now preserve the input order of the curves, and the resulting toolpath is sorted accordingly. This gives users more flexibility, enabling them to machine edges in their preferred sequence to improve overall machining efficiency and precision.

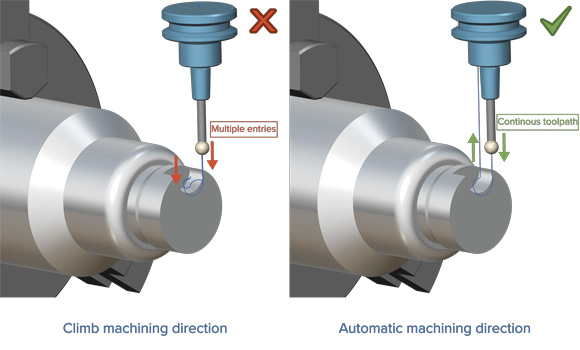

Automatic machining direction
Previously, determining the appropriate machining direction for 3- and 4-axis toolpaths often led to suboptimal ordering, resulting in discontinuous toolpaths.
ModuleWorks 2025.04 contains a new option called ‘automatic machining direction’ that takes the contour direction into account to ensure optimal ordering. This makes deburring toolpaths more user-friendly while also reducing the machining cycle time.
Special parts – multiblade

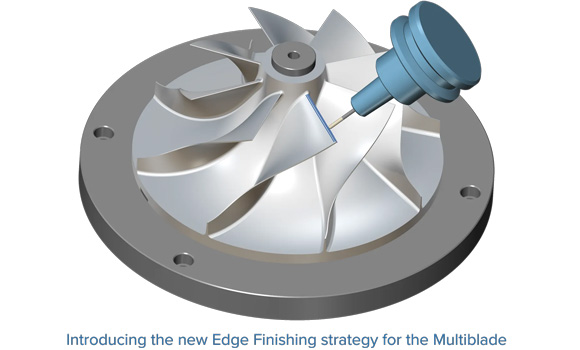

Edge finishing
Users often struggle to prevent the tool from rubbing against the leading edge due to tilting and machine motion. As the edge is thin, this can cause overheating.
ModuleWorks 2025.04 solves this problem by applying an extension, leaving offset material to be removed later. This strategy drives the tool longitudinally along the edge, effectively removing the extra material leftover from the previous operation without causing damage to the thin leading edge. This enhanced toolpath allows the part to be finished with the required surface quality and material integrity.
3-axis machining

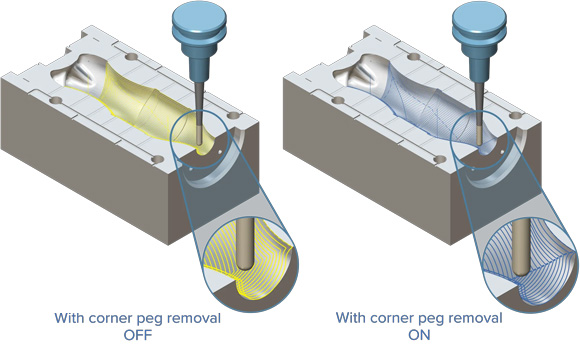

Corner peg removal for constant cusp
Generating a consistent surface finish in corner regions is often hampered by pattern collapse and corner smoothing.
The ModuleWorks 2025.04 release introduces an intelligent Corner Peg Removal solution that tackles problematic cusps where the pattern collapses or corner smoothing shifts the toolpath. This new approach automatically adds strategic peg loops in corner areas, ensuring smooth, consistent results and minimising the need for manual polishing.
Simulation SDK – cutting simulation

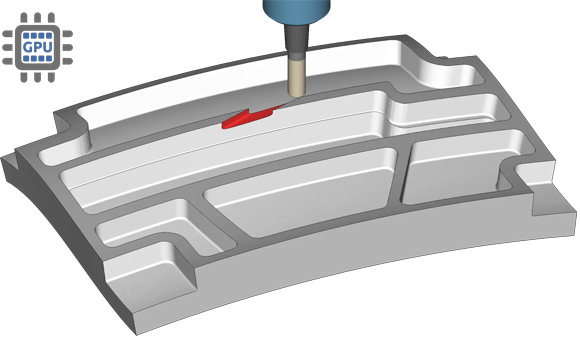

GPU-accelerated collision checking
Simulating material removal while checking for potential tool collisions with the in-process stock is computationally intensive, slowing down the simulation in complex machining scenarios.
The ModuleWorks 2025.04 release offers enhanced simulation capabilities through GPU-accelerated simulation, which can now be used to optimise both material and collision checking. This feature increases the simulation speed, particularly for large-scale machining operations, while ensuring precise collision detection.
ModuleWorks 2025.04 is available for download from the ModuleWorks website.
